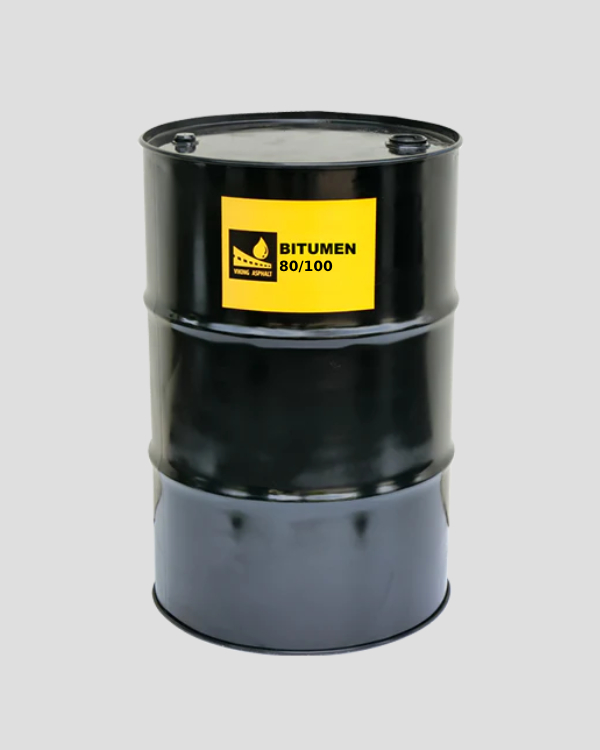

Bitumen is a standard bitumen of penetration type, which is commonly known as road grade bitumen and has extraordinary properties for road construction and asphalt and road surface. This type of bitumen is mainly used in making hot asphalt mixtures. Penetration grade bitumens such as bitumen 80-100 are bitumens that are obtained by performing an aeration process on the bottom of the distillation tower, known as vacuum baton so that its degree of permeability is between 80 and 100. Infiltration grade bitumens have thermoplastic properties, this property causes the viscosity of bitumen to decrease at high temperatures and its viscosity to increase at low temperatures. Meanwhile, 80-100 bitumen is most used in the preparation of the road surfaces.
| Analysis Of Bitumen 85/100 | |||
| SPECIFICATION | Unti | Limit | TEST METHOD |
| DENSITY @ 25 C | kg/m3 | 1000-1050 | ASTM D70 or D3289 |
| PENETRATION @ 25 C | Mm/10 | 85-100 | ASTM D5 |
| SOFTENING POINT | C | 42 min | ASTM D36 |
| DUCTILITY@ 25 C | Cm | 100 min | ASTM D 113 |
| LOSS ON HEATING | wt% | 0.5 max | ASTM D6 |
| DROP IN PENETERATION AFTER LOSS ON HEATING | % | 20 max | ASTM D5 |
| FLASH POINT | C | 232 min | ASTM D92 |
| SOLUBILITY IN TRICHLOROETHYLENE | wt% | 99.0 min | ASTM D2042 |
| SPOT TEST | – | Negative | AASHTO T 102 |
| VISCOSITY @ 60C | P | 1000±200 | ASTM D2171 |
| VISCOSITY @ 135C | Cst | 250 min | ASTM D1270 |
| Test on Residue From Thin Film Oven Test (ASTM D1754) | |||
| Retained penetration after (T.F.O.T) | % | 50 min | ASTM D5 |
| Ductility . (25C), 5cm/min, cm after TFOT | cm | 75 | ASTM D113 |
| VISCOSITY @ 60C | P | 5000 max | ASTM D2171 |
