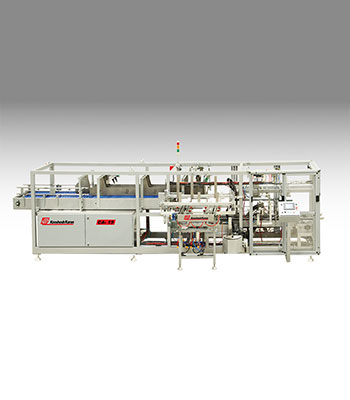

Description
Wrapping plastic:
Carton board thickness and type depends on the product.
Characteristics :
- The machine has two compartments, configuration table and automatic carton forming compartment.
- In the configuration table, bottles are arranged in desired rows (maximum 4×4) and put on the carton board.
- The stack of flat carton boards are placed in the carton magazine.
- Carton boards are folded mechanically by bottles weight.
- The machine is using Hot Melt glue.
- Glue is pumped by an Air pump.
- After filling, end flaps of the carton are glued and pressed by pneumatic cylinders.
Machine speed :
The speed of packing in the machine is 12 cartons per minute.
Control mechanism :
The machine is full automatic in operation and is equipped with Electronic control (PLC),
Electronic speed control (Frequency inverter), and Touch screen monitor.
-It is also equipped with control system for compressed air, glue temperature, bottle and carton board existence, and error monitoring.
Fabrication materials :
All electric ,electronic and pneumatic equipment used in this machine is european and japanese made.
| Container height ( mm ) : 100-280 |
| Container diameter ( mm ) : 50-104 |
| Maximum carton width (mm) : 600 |
| Output ( packs/min ) : 12 |
| Air Cunsumption : 48 NL/min |
| Power Cunsumption : 5 KW |
