Electrical application:
Installable access door or a suitable plate for electrical box, earth screw

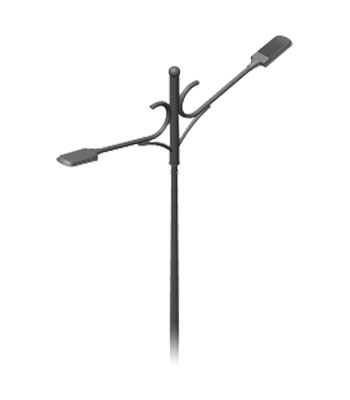

Design & Production Capabilities
– Capability of producing poles as one piece up to 14 meters
– Capability of producing poles in single gap up to 500 mm diameter
– Producible with an access door with a special lock to prevent unauthorized access
– Possibility to design and build lighting poles for particular or multi-purpose applications
– 3-to-6-meter poles suitable for lighting parks and green spaces
Technical Data
ST52 (S355JR)
| height(m) | top diameter mm | bottom diameter mm | Pieces | thickness mm | baseplate dimension mm3 | access door dimension mm2 | design based wind velocity kmh |
| H | B | A | D*E*C | F*G | |||
| 3 | 80 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 4 | 70 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 5 | 60 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 6 | 60 | 120 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 7 | 60 | 130 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 8 | 60 | 140 | 1 | 3 | 300*300*12 | 200*100 | 120 |
| 9 | 60 | 150 | 1 | 3 | 300*300*12 | 200*100 | 120 |
| 10 | 60 | 160 | 1 | 3 | 300*300*12 | 200*100 | 120 |
| 11 | 60 | 170 | 1 | 3 | 330*330*15 | 250*110 | 120 |
| 12 | 60 | 180 | 1 | 3 | 330*330*15 | 250*110 | 120 |
| 13 | 60 | 190 | 1 | 4 | 330*330*15 | 250*110 | 120 |
| 14 | 60 | 200 | 1 | 4 | 330*330*15 | 300*120 | 120 |
ST37 (S235JR)
| height(m) | top diameter mm | bottom diameter mm | Pieces | thickness mm | baseplate dimension mm3 | access door dimension mm2 | design based wind velocity kmh |
| H | B | A | D*E*C | F*G | |||
| 3 | 80 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 4 | 70 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 5 | 60 | 110 | 1 | 3 | 250*250*10 | 200*90 | 120 |
| 6 | 60 | 120 | 1 | 3 | 300*300*12 | 200*90 | 120 |
| 7 | 60 | 130 | 1 | 3 | 300*300*12 | 200*90 | 120 |
| 8 | 80 | 140 | 1 | 3 | 300*300*12 | 200*90 | 120 |
| 9 | 80 | 150 | 1 | 3 | 300*300*12 | 200*100 | 120 |
| 10 | 100 | 160 | 1 | 3 | 400*400*15 | 200*100 | 120 |
| 11 | 90 | 170 | 1 | 3 | 400*400*15 | 200*100 | 120 |
| 12 | 80 | 180 | 1 | 3 | 400*400*20 | 250*110 | 120 |
| 13 | 70 | 190 | 1 | 4 | 400*400*20 | 250*110 | 120 |
| 14 | 60 | 200 | 1 | 4 | 400*400*20 | 300*120 | 120 |
ST37 (S235JR)
| height(m) | top diameter mm | bottom diameter mm | Pieces | thickness mm | baseplate dimension mm3 | access door dimension mm2 | design based wind velocity kmh |
| H | B | A | D*E*C | F*G | |||
| 3 | 60 | 130 | 1 | 3 | 250*250*10 | 200*80 | 120 |
| 3 | 60 | 90 | 1 | 3 | 250*250*10 | 200*80 | 120 |
| 4 | 60 | 100 | 1 | 3 | 250*250*10 | 200*80 | 120 |
| 5 | 60 | 110 | 1 | 3 | 250*250*10 | 200*80 | 120 |
| 6 | 60 | 120 | 1 | 3 | 250*250*10 | 200*80 | 120 |
global standards
| Steel Standards | DIN 17100 |
| Welding Rod Standards | EN 440- DIN 8559 – AWS/ASM |
| Design and Manufacturing | ASCE SEI 7-10 , UBC 97 , AASHTO , BS 5649 , ASTM A36/A36M, ASTM A575, ASTM A576, ANSI C136.3 |
| Coating Standards | ASTMA123/A123M, ASTMA153/A153M, FSTT-P-38, FS TT-P-645 |
| Accessories Standards | ISO 261-ISO 262-ISO 263 |
| Pipe Standards | DIN EN 10255(2440) – JIS G 3444 – BS 1387M – DIN 2349 – JIS G 3445 – BS 1387L |
