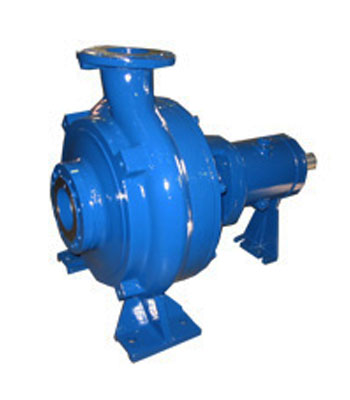

Name: Heavy Slurry pump (ISO 5199)
SKU: 28177
Availability: InStock

Heavy Slurry pump (ISO 5199)

0,00 €

Usages:

Steel complex and mining

Design:

Horizontal, radially split volute casing pump in back pull-out design, with impeller adapted to meet application requirements, single-flow, and single-stage.

Special Features:

Reinforced, axially adjustable bearing assembly on all pumps.
Shaft seal: mechanical seal integrated into the casing cover, or gland packing.
Even cast iron pumps are supplied with pump internals (impeller and wear plate) made of wear-resistant ERN (nickel cast iron).

Description

Operating Data:

Pump Size: 40 up to 250
Capacity: up to 1300 m3/h
Head: up to 100 m
Operating pressure: up to 10 bar
Operating temperature: from -40 to +280 C

General Drawing:

Usages:

For handling all kinds of pulps not liable to plait as well as stock suspensions up to 5% bone dry.
This pump is used in the chemical and process engineering industries, paper and pulp industries sugar, and food and beverages industries, in flue gas desulphurisation and coal upgrading and in the treatment of industrial efflu

The characteristic curves

Characteristic Curve for KWPK 300-400-960rpm
Characteristic Curve for KWPK 300-400-1450rpm
Characteristic Curve for KWPK 200-400-960rpm
Characteristic Curve for KWP 200-400-1450rpm
Characteristic Curve for KWP150-400-960rpm
Characteristic Curve for KWPK 150-400-1450rpm
Characteristic Curve for KWP 150-315-960rpm
Characteristic Curve for KWPK 150-315-1450rpm
Characteristic Curve for KWPK 100-400-1450rpm
Characteristic Curve for KWPK 100-315-1450rpm
Characteristic Curve for KWPK 100-250-1450rpm
Characteristic Curve for KWPF 80-315-2900rpm
Characteristic Curve for KWPF 150-400-960rpm
Characteristic Curve for KWPF 100-315-1450rpm
Characteristic Curve for KWPF 100-250-1450rpm
Characteristic Curve for KWP 100-240-2900rpm
Characteristic Curve for KWPF 150-400-1450rpm
Characteristic Curve for KWPF 150-315-960rpm
Characteristic Curve for KWPF 100-400-1450rpm
Characteristic Curve for KWPF 100-315-1450rpm
Family Curve -1450 rpm
Family Curve -2900 rpm
Family curve-960 rpm
