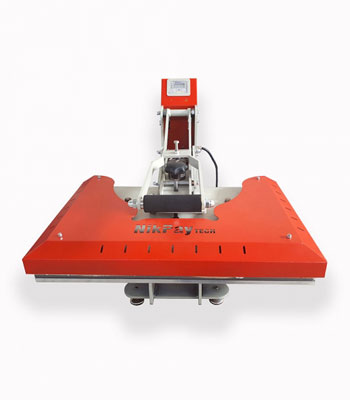

Technical specifications of manual heat press machine
Performance specifications | |
| Adjustable maximum temperature | 250 degrees Celsius |
| Number of times | 2 times |
| Plate and floor material | Aluminum alloy |
| Print time | 20 to 30 seconds |
| Hot glue activation time | 5 to 20 seconds |
| System | Oil jack |
| Open system | Magnetic |
General specifications | |
| Plate dimensions | 60 × 40 cm |
| dimensions of the device | 600x 700 x460 (mm) |
| Net weight of the device | 40 kg |
| Packaged dimensions | 700x 800x 500 (mm) |
| Machine weight with packaging | 45 kg |
Technical specifications | |
| Maximum pressure | ~ 300 kg |
| Power | 2000-3000 watts |
| Working voltage | 220 volts city |
| controller | Digital PID controller |
Environmental profile | |
| Operational noise | Less than 55 decibels |
| environment temperature | 0 to 70 degrees Celsius |
| amount of humidity | 0 to 70% |
Additional specifications | |
| It has LED display and touch plate keys | |
| Has an overload protection fuse | |
| Has three protection steps for the elements | |
| Has an opening pressure change system | |
| Has semiconductor control technology | |
– Application of manual heat press machine
- Sublimation printing
- Transfer printing
- Foil printing
- Plastisol printing
- Fixing the hotfix gem
– Features of manual heat press machine
- Nikpei thermal plates have a high thickness to uniformize the temperature at the set temperature, which causes the temperature difference at the plate surface to be less than 2 degrees.
- High quality of parts and coatings used and its stability
- High quality of metals and alloys used
- High precision standard production using modern and up-to-date devices
- Use of advanced control algorithms
- Use a variety of hardware and software protections
- Full warranty for mechanical and electronic parts
- Lifetime warranty on used items
– Types of manual heat presses
Manual heat press (magnetic) with fixed table
Manual heat press with fixed or magnetic table is a device for transferring and stabilizing various types of printing such as text, photos, logos and thermal effects on objects that use high temperature and high pressure at a certain time, to print permanently on the product. In fact, heat presses are like large irons, with the difference that ordinary irons and laminating machines can not apply the required temperature and pressure, but this machine introduces more heat and pressure and uniformity.
Manual heat press (magnetic) with movable table
A manual heat press with a movable or magnetic table is a device for transferring and stabilizing various types of printing such as text, photos, logos and thermal effects on objects that use high temperature and high pressure at a specific time to print permanently on the product. In fact, heat presses are like large irons, with the difference that ordinary irons and laminating machines can not apply the required temperature and pressure, but this machine introduces more heat and pressure and uniformity.
Two-table manual (magnetic) heat press
A manual heat press with two tables or a magnet is a device for transferring and stabilizing various types of printing such as text, photos, logos and thermal effects on objects that use high temperature and high pressure at a specific time to print permanently on the product. In fact, heat presses are like large irons, with the difference that ordinary irons and laminating machines can not apply the required temperature and pressure, but this machine introduces more heat and pressure and uniformity.
